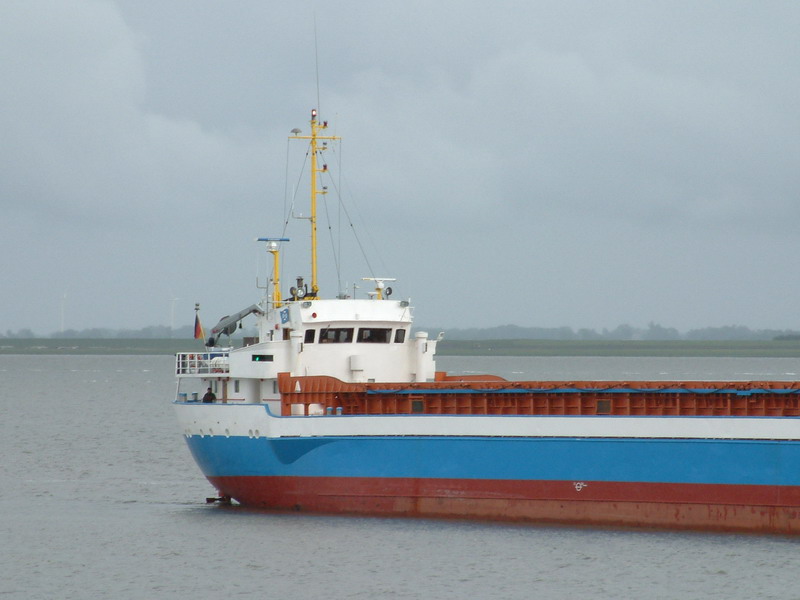

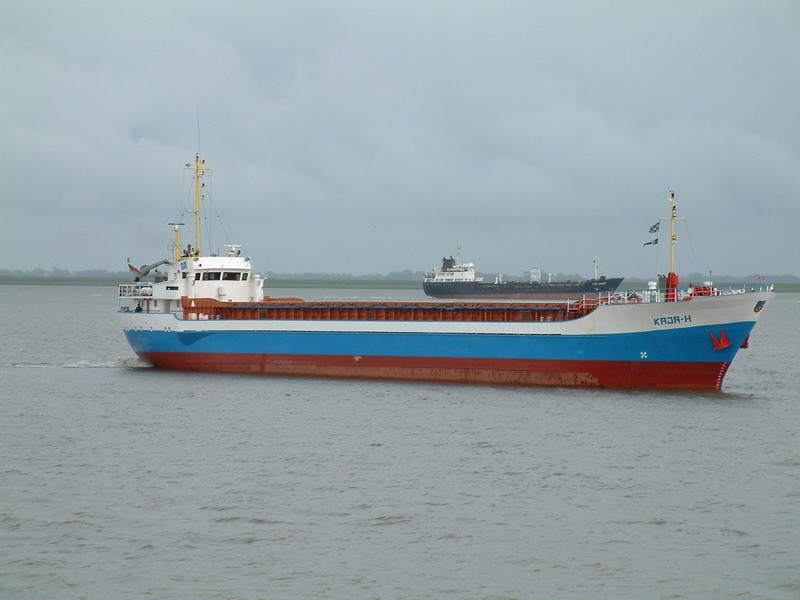

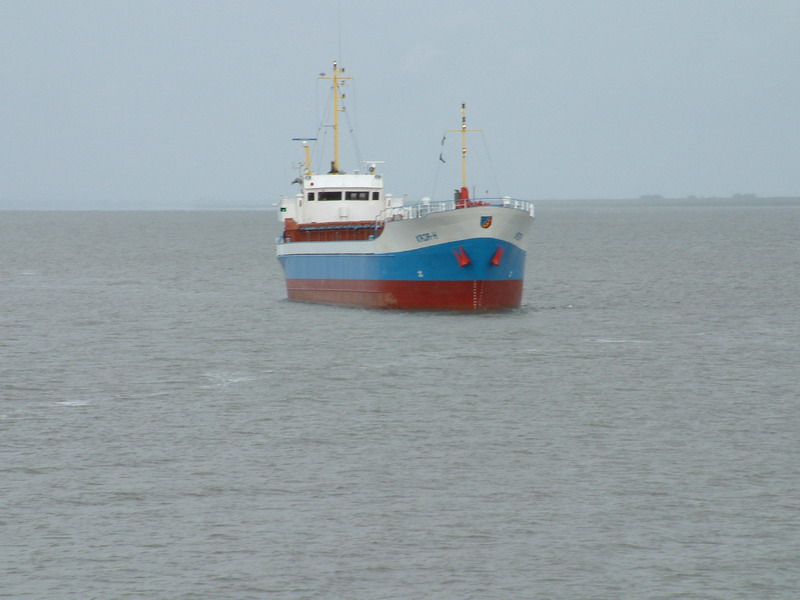

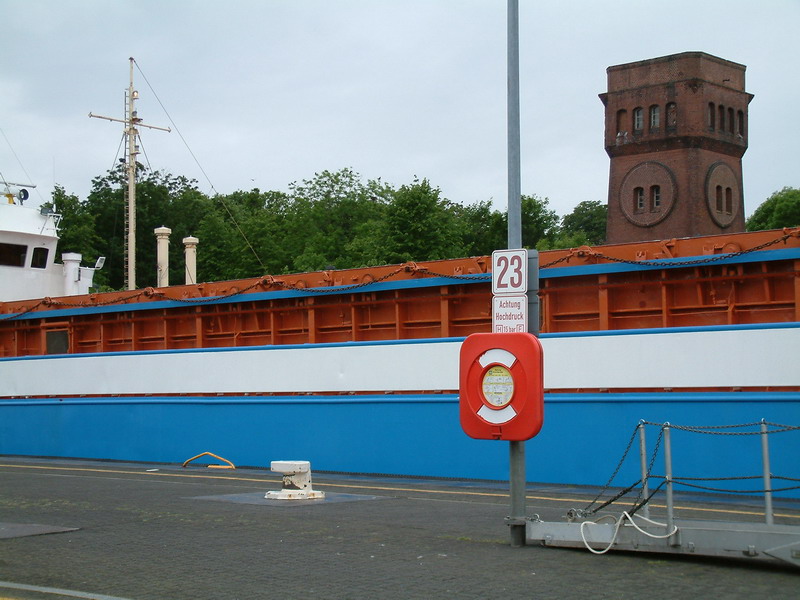

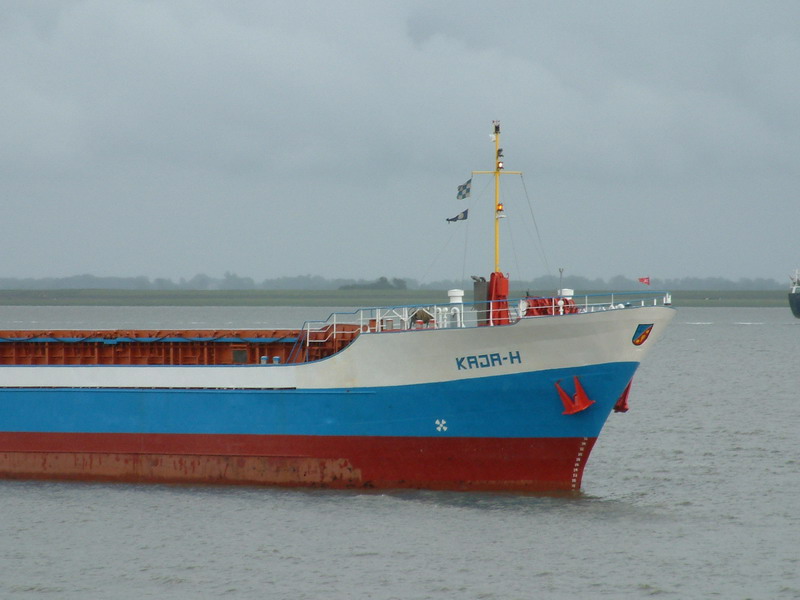

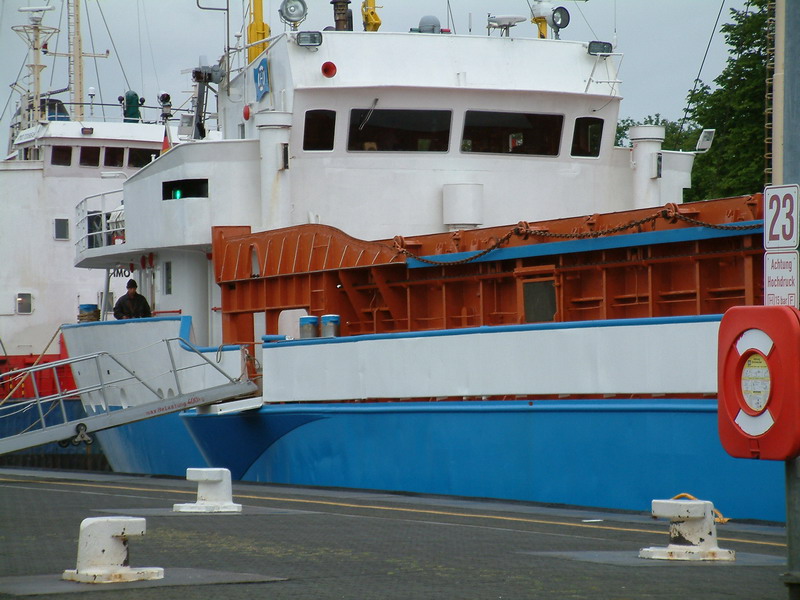

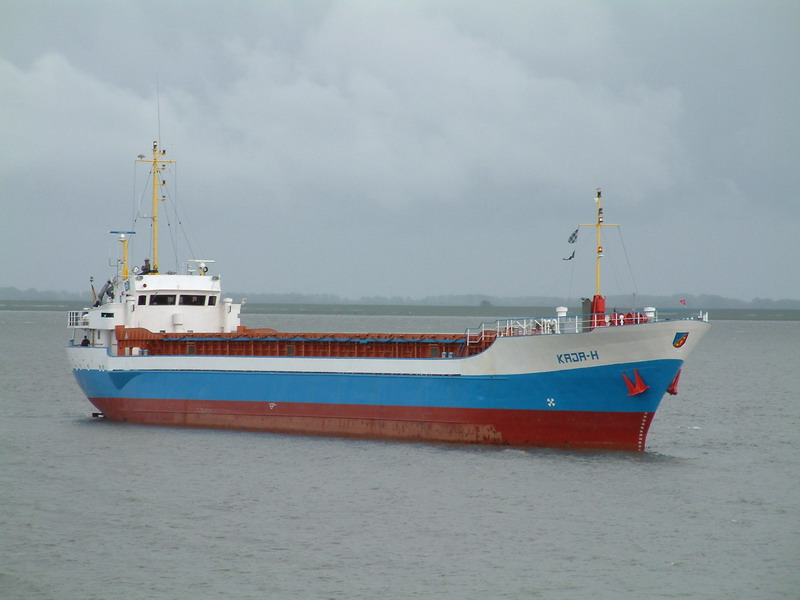

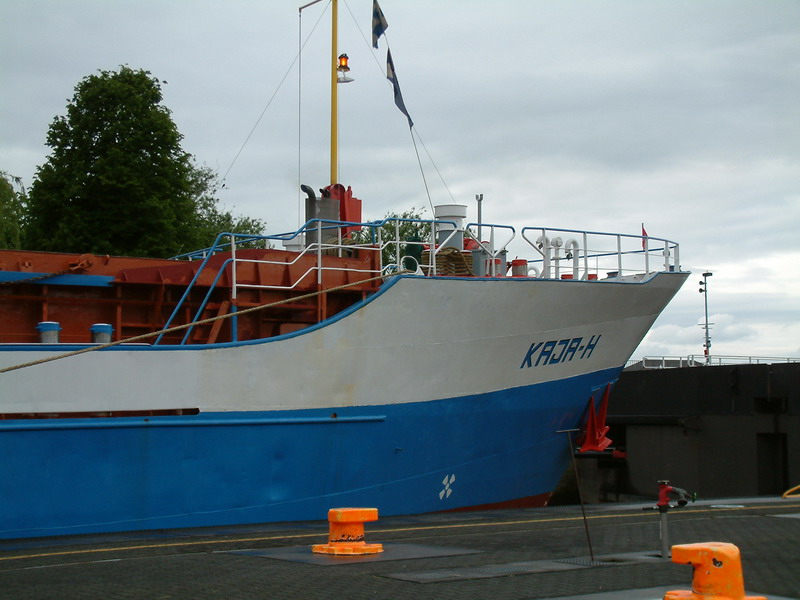

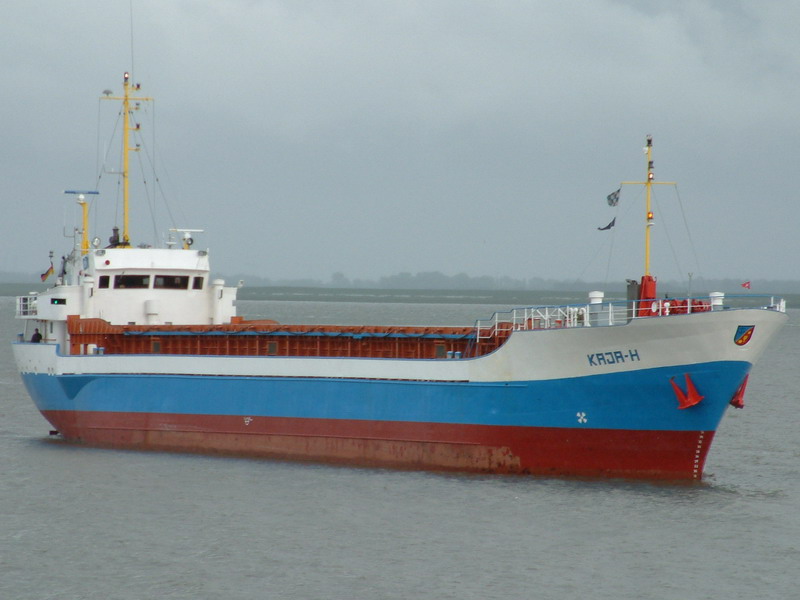

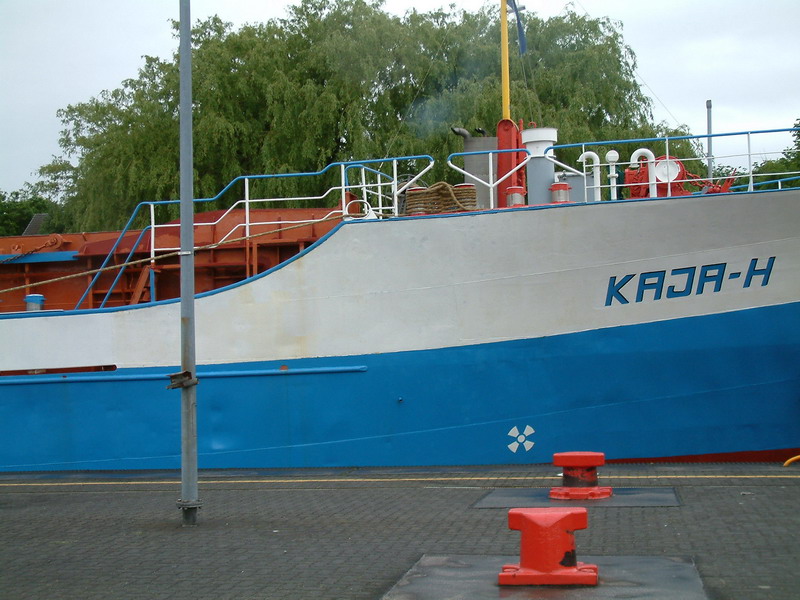

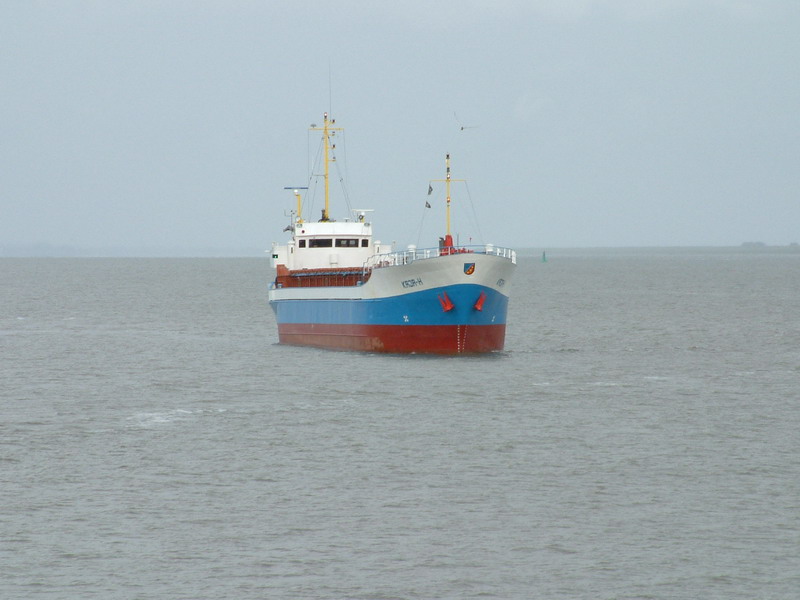

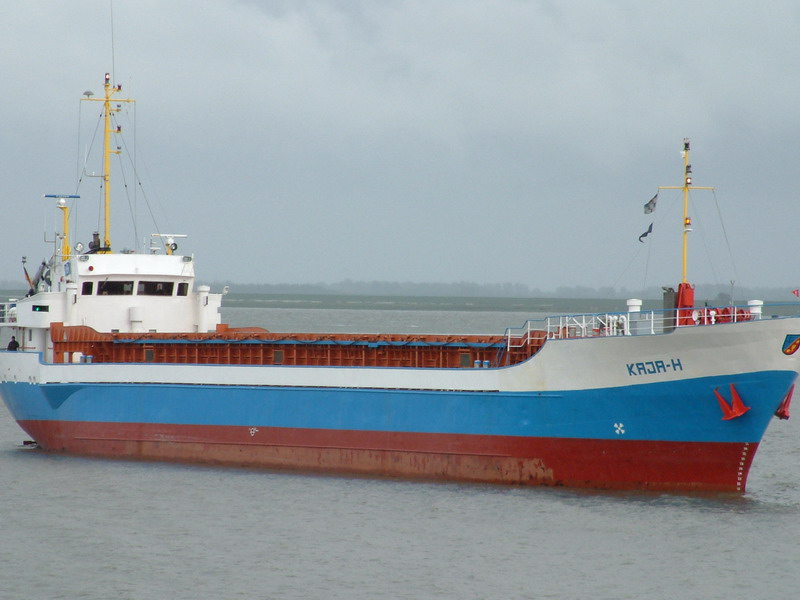

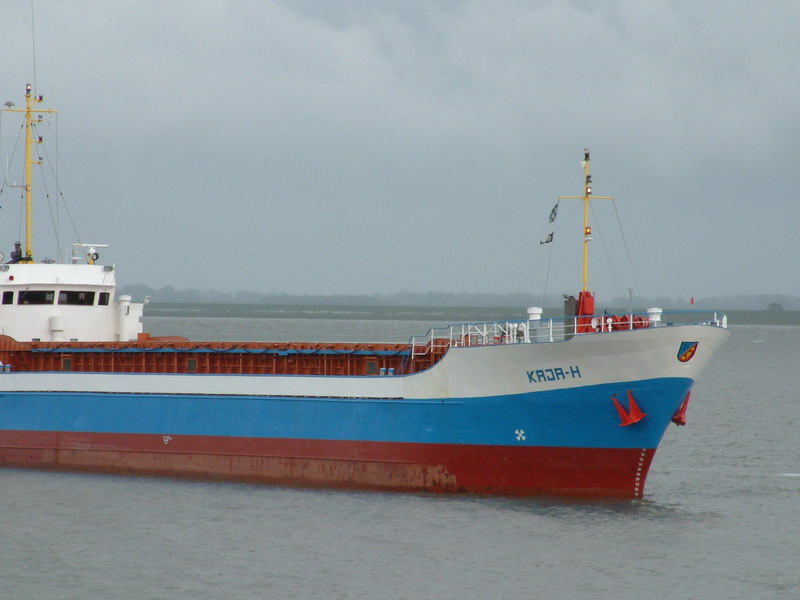

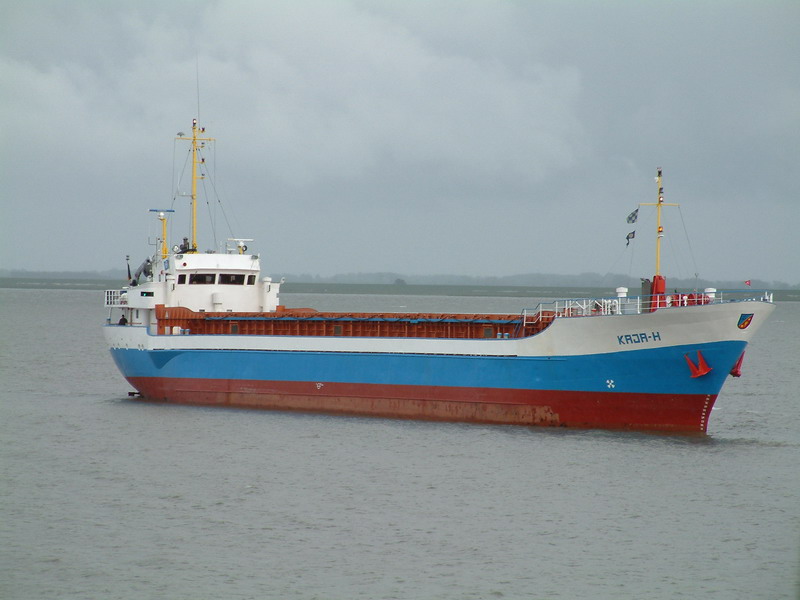

Castor fährt noch unter dem Namen Meridian...
Schiffsname | MERIDIAN |
Ex-Namen | KAJA H, CASTOR |
GL-Register-No. | 5638 |
IMO-No. | 7002605 |
Länge über alles | 74.12 m |
Breite | 10.80 m |
Moulded Depth | 5.60 m |
Tiefgang | 3.653 m |
Gross Tonnage | 1251 |
Net Tonnage | 810 |
tdw | 1404 |
Ballastwater | 609 m3 |
Fuel | 59 m3 |
Hull & Cargo | |
Shipbuilder / Place | Martin Jansen Schiffswerft und Maschinenfabrik / Leer |
Yard Number | 72 |
Keellaying | 1969-04-21 |
Launching | 1969-10-14 |
Completion | 1969-12 |
Alteration(s) | Ship lengthened and increased in breadth 1974-09 |
Forecastle | 7.50 m |
Poop | 10.19 m |
Number of Watertight Bulkhead(s) | 3 |
Number of Continuous Deck(s) | 2 |
Double Bottom Type | Partly double bottom (e.g. interrupted in way of machinery space) |
Largest Hatch | Length = 42.37 m / Breadth = 8.10 m |
Capacities - according to Owners' statements | |
Grain | 2773 m3 |
Bales | Bales |
Special Arrangements | |
1 Transvers thruster JASTRAM | forward |
Lifting Device(s) | |
2 Derricks, each | 3 t |
Machinery | |
Total Power | 853 kW |
Converted Power | 441 kW |
Transmission | Main propulsion acts directly on the propellershaft |
Starter Type | Compressed air direct |
One Main Engine(s) | |
Year of Manufacture | 1969 |
Manufacturer | VEB Schwermaschinenbau "Karl Liebknecht" |
Model | 8 NVD 48 A-2 U |
Type | Diesel engine, four stroke single acting |
Power | 853 kW |
Main Engine Rated Speed | 375 min-1 |
8 Cylinder, Diameter / Stroke | 320 mm / 480 mm |
Propeller(s) / Speed | |
1 Propeller(s), Type | Solid propeller, aft |
Ship's Speed | 10.00 kn |
Electric Installation(s) | |
1 Plant | 380/ 220 V with 80 kVA |
1 Plant | 380 V with 25 kVA |
Generators | |
2 Main generators, each | 40 kVA |
1 Emergency generator | 25 kVA |
Compressed Air Receiver(s) | |
2 Receivers, each | 500 liters, 30 bar |
Letztes Update am 31.01.2009 16:47:29
